90,00€ – 102,00€

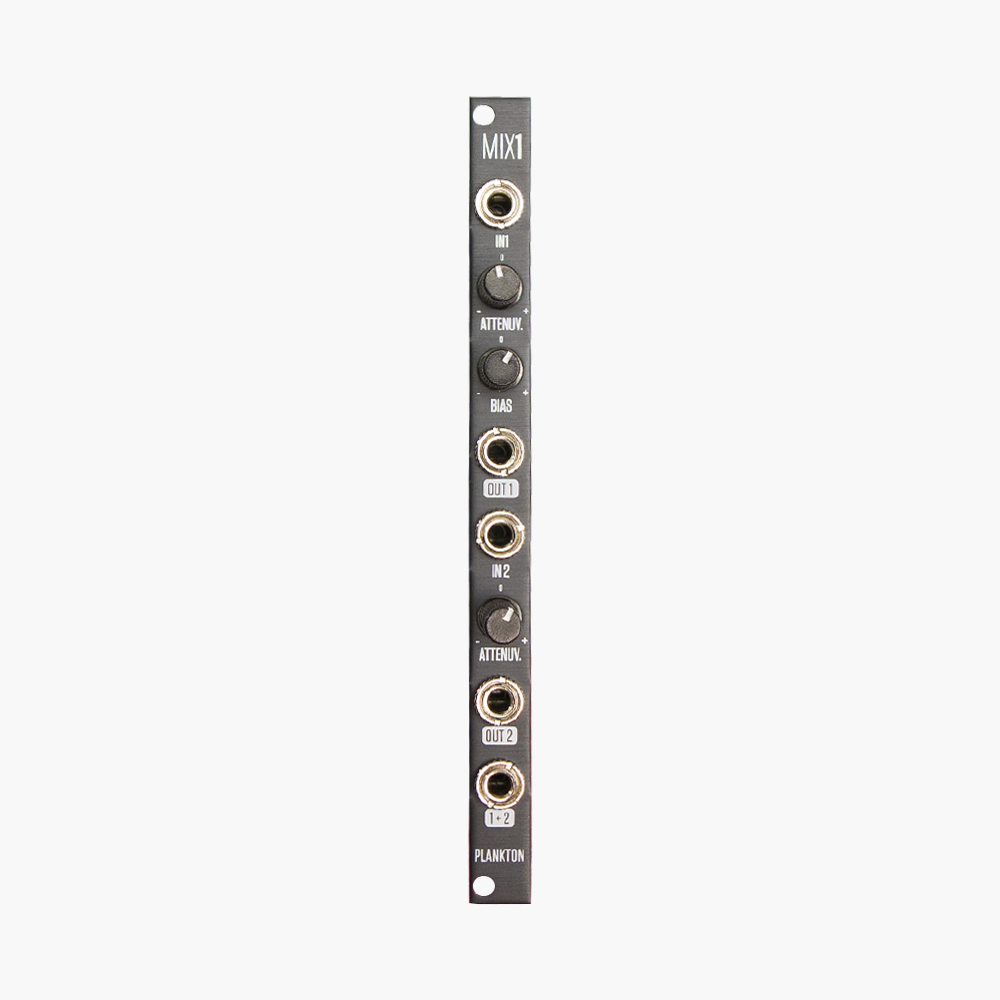

MIX1 is a dual channel mixer and utility module which can be used both for audio and video (LZX standard) operation.
“Only Audio” version is capable of process audio and control signals like in any standard eurorack system.
“Audio and Video” can also control signals in the video range (LZX standard) up to 6MHz.
Manual ·[]· Modulargrid
Features:
– 2HP / 15mA @ +12V / 15mA @ -12V / 29mm deep.
– 2 channels with individual outputs.
– Channel 1 has attenuverter and bias controls.
-Channel 2 has one attenuverter control.

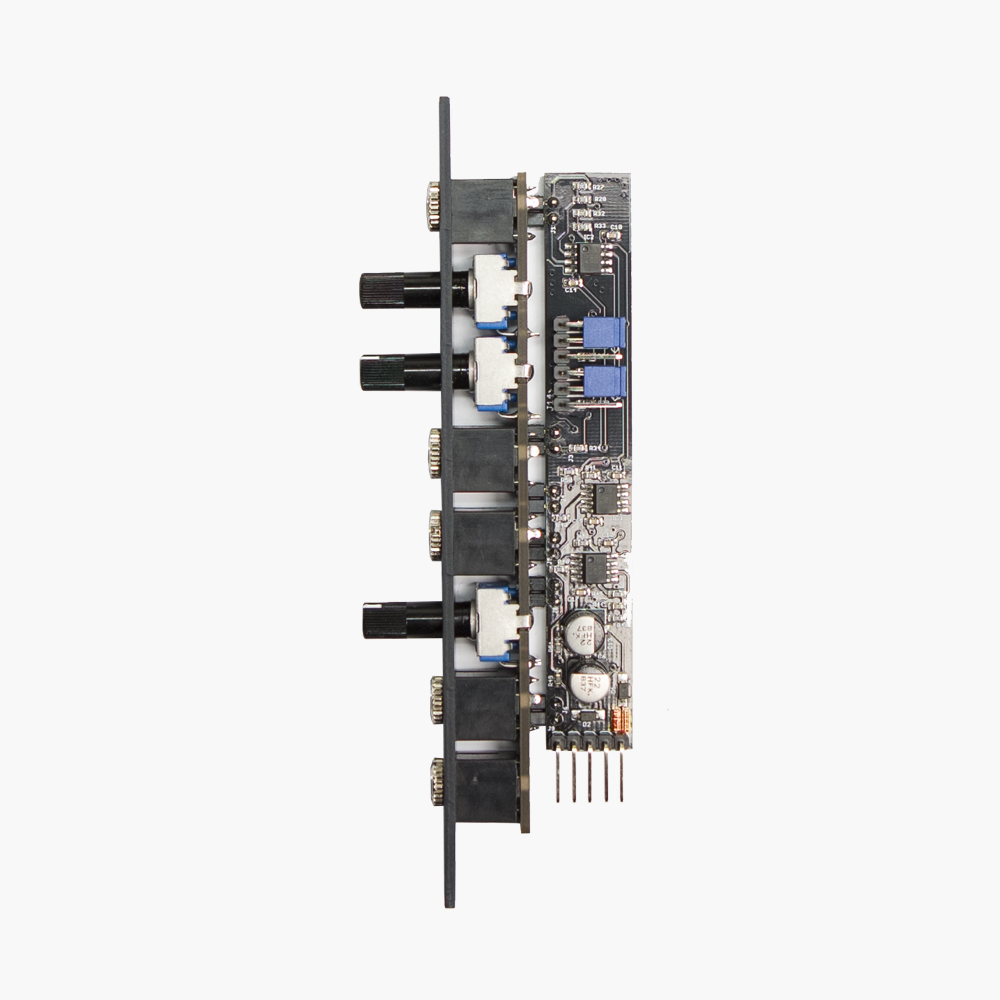

– Suitable for audio and video signals (the jumpers behind the unit can be used to set up the bias range depending on the use.
| Weight | 0.2 kg |
|---|---|
| Range | Audio and Video, Only Audio |
